4040 T-Slot Universal Dynamic "90 degree" Pivot Single-Bolt Assembly with Dual L Arms

4040 T-Slot Universal Dynamic "90 degree" Pivot Single-Bolt Assembly with Dual L Arms

PN: 556638M8X40M8X16

⚠️ Important Shipping Note (Long Items): If your delivery address is outside the Perth Metro area, the system may show a $0.00 shipping cost at checkout. Do not worry! We will contact you directly by phone after you place your order to confirm the most affordable freight options to your remote region or interstate address.

$30.45 AUD
$30.45 AUD
Sale Sold out
Includes GST.

Assembly includes fasteners.

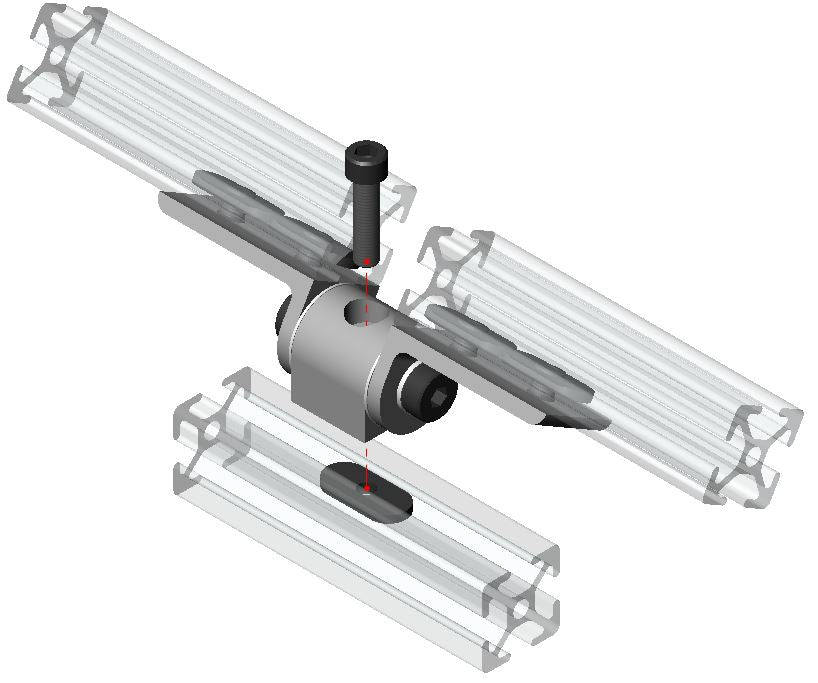

The 4040 T-Slot Universal Dynamic "90 degree" Pivot Single-Bolt Assembly with Dual L Arms is engineered for creating precise, right-angle dynamic pivots in 4040 series T-slot extrusion frameworks. This assembly is uniquely designed to produce a pivot that is parallel to the mounting profile, offering a full axial motion from 0 to 90 degrees. The single-bolt design ensures smooth, easy adjustment and locking.

Key Features:

  • Right-Angle Pivot: Creates a 90-degree pivot point, allowing you to build hinged doors, adjustable braces, and swiveling components that rotate perpendicular to the main frame.

  • Dual "L" Arms: The L-shaped arms provide an offset connection, offering greater clearance and structural stability for your hinged components.

  • Single-Bolt Design: This assembly uses a single bolt for a clean, efficient connection and allows for a wide range of motion.

  • Durable Construction: Features permanently lubricated bronze bushings for a long service life and protective nylon thrust washers for smooth operation.

  • Complete Kit: Includes all necessary hardware and a shim kit for a secure, precise fit without the need for special machining.
