2020 Aluminum T-Slot Profile - 20mm x 20mm with 4 Slots | Lightweight Modular Framing - Silver or Black
2020 Aluminum T-Slot Profile - 20mm x 20mm with 4 Slots | Lightweight Modular Framing - Silver or Black
SKU:
⚠️ Important Shipping Note (Long Items): If your delivery address is outside the Perth Metro area, the system may show a $0.00 shipping cost at checkout. Do not worry! We will contact you directly by phone after you place your order to confirm the most affordable freight options to your remote region or interstate address.
Couldn't load pickup availability
Share

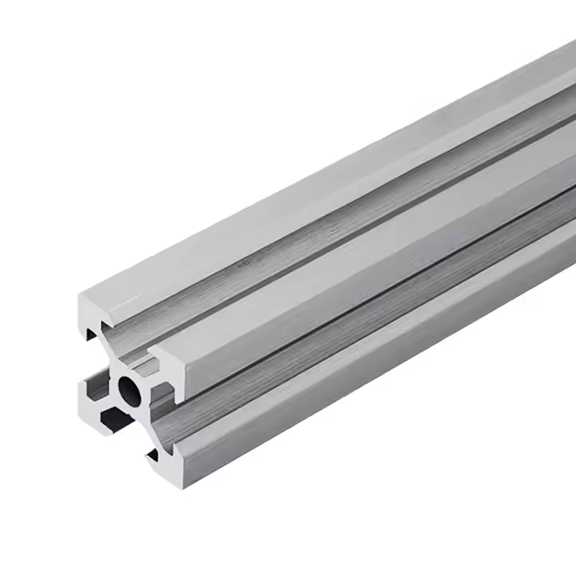

The 2020 T-Slot Aluminum Profile is the ultimate lightweight solution for precision framing and modular builds. With a compact 20mm x 20mm square cross-section and 4 open T-slots (one on each face), this profile offers maximum flexibility for small-to-medium structural projects.
Its smooth surface finish is not only aesthetically pleasing but also resistant to dirt and debris, making it ideal for clean-room environments, laboratory equipment, and 3D printer frames. Designed for the "Maker" and the professional alike, the 20 series is easy to cut, drill, and assemble using standard 20 series fasteners.
Common Applications:
- 3D Printers & CNC Machines: The go-to rail for desktop-sized motion control.
- Safety Guards: Lightweight framing for machine enclosures and protective barriers.
- Displays & Signage: Clean, professional-looking stands and retail mounting.

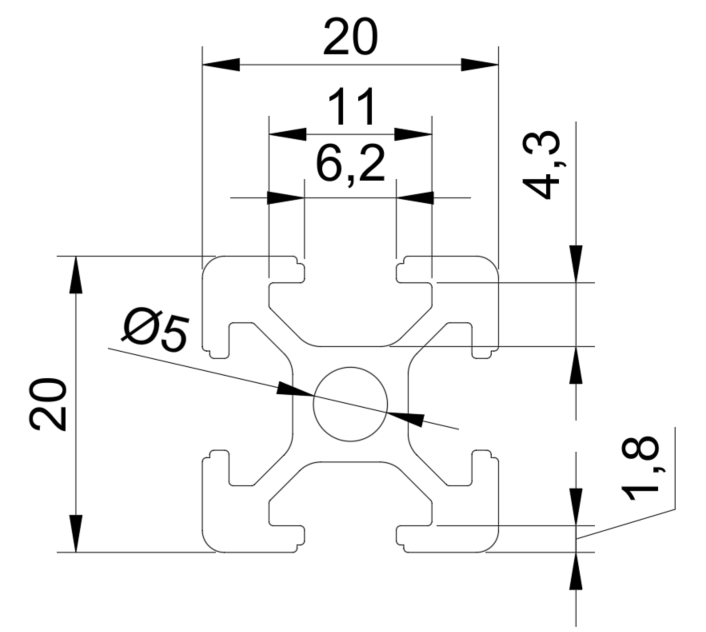

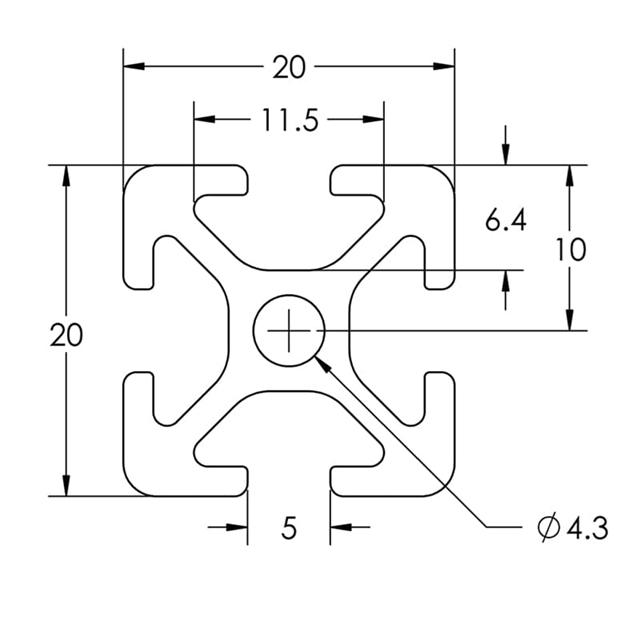

| Feature | Specification |
|---|---|
| Series | 20 Series (20x20 Geometry) |
| Width / Profile | 20mm x 20mm x 3000mm (Configuration) |
| Material | Structural Grade High-Tensile Aluminum |
| Weight per Meter | 0.46 kg/m |

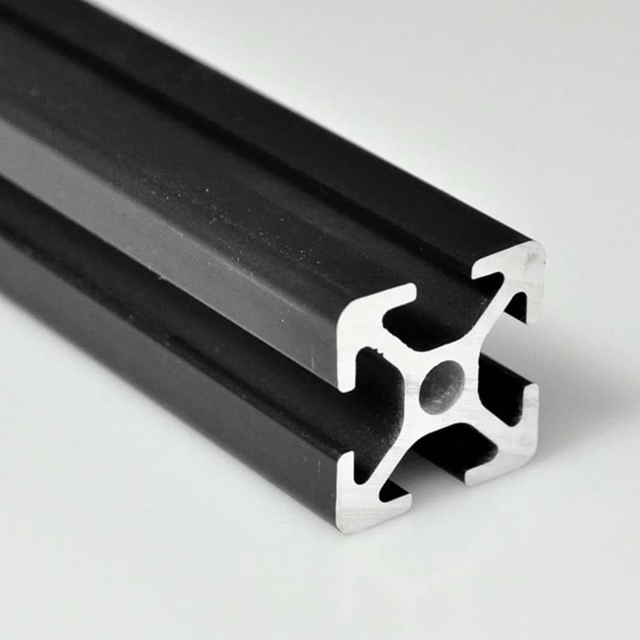

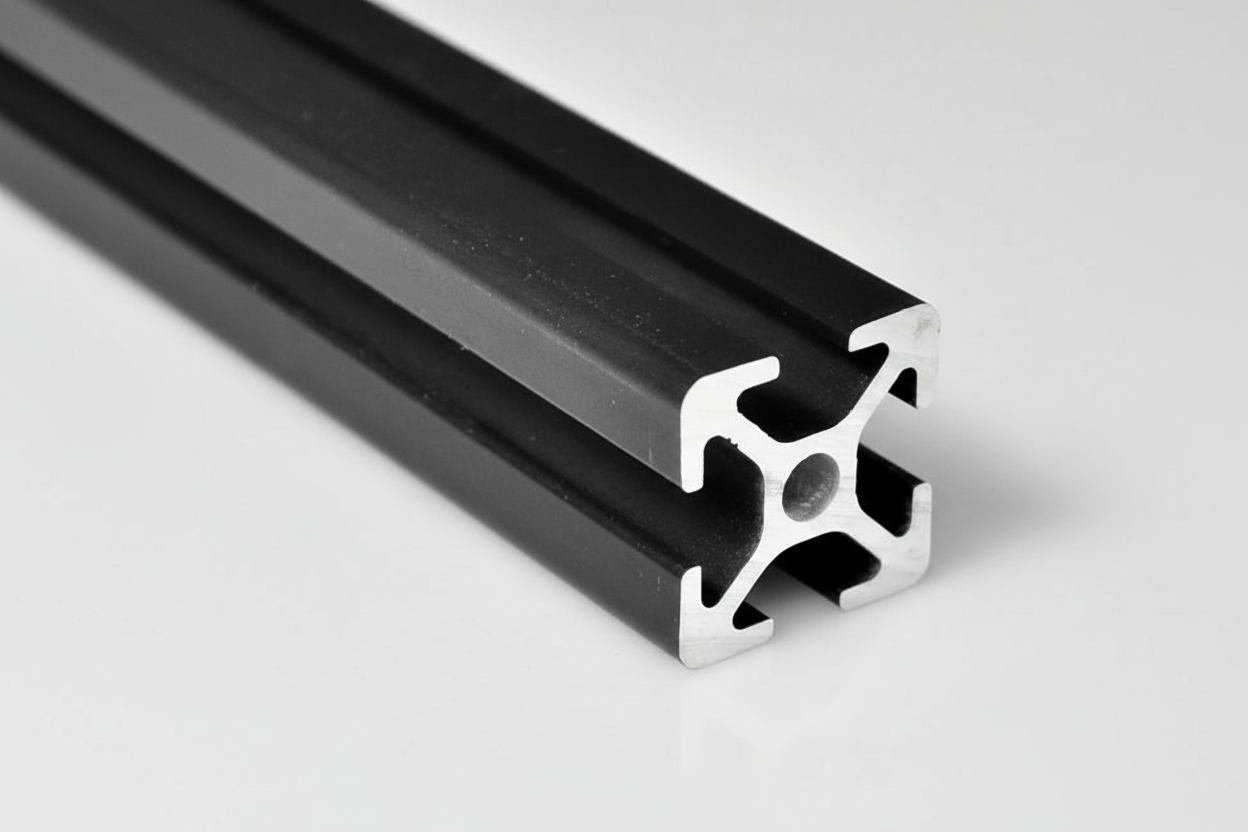

| Finish | Silver or Black Anodized |
| Slot Width | 6.2mm (Standard 6mm hardware) |
