Product Description

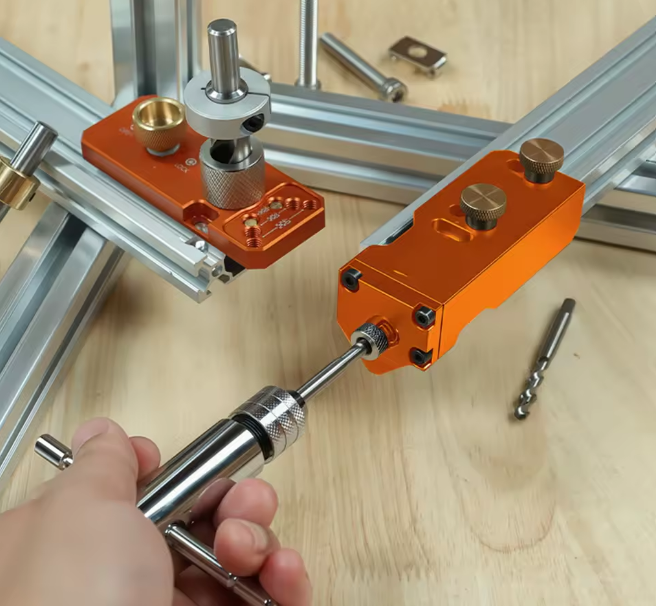

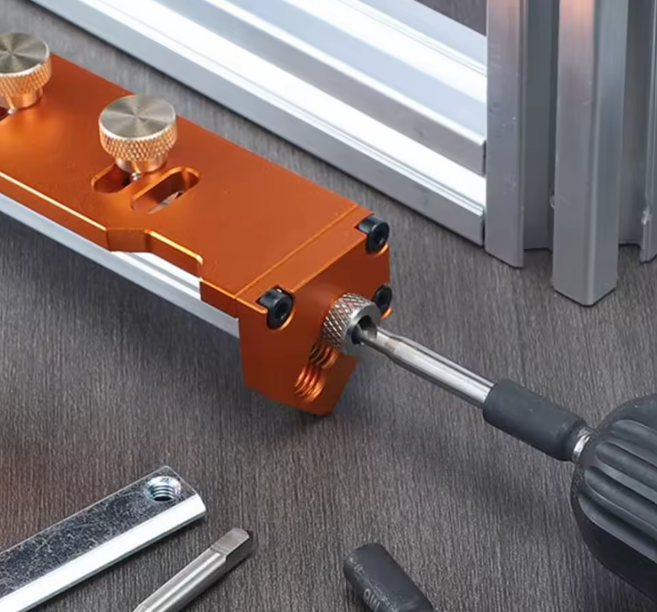

Streamline your assembly process with our Universal End Profile Threading Jig Kit, precision-engineered for 2020, 3030, and 4040 T-Slot Aluminum Profiles. This essential workshop tool ensures that your end-taps are perfectly perpendicular to the profile face, eliminating the risk of skewed threads that can ruin an entire extrusion length.

Whether you are building a custom CNC machine, a sim-racing cockpit, or industrial shelving, creating high-quality threads in the center bore is vital for structural integrity. This jig securely clamps to the end of your profile, providing a stable guide for your tapping tool. It is designed to center perfectly on the core of the extrusion, allowing you to create clean, repeatable M4, M6, or M8 threads with ease.

Note: This kit includes the alignment jig and mounting hardware. Taps and drill bits are sold separately.

Key Features:

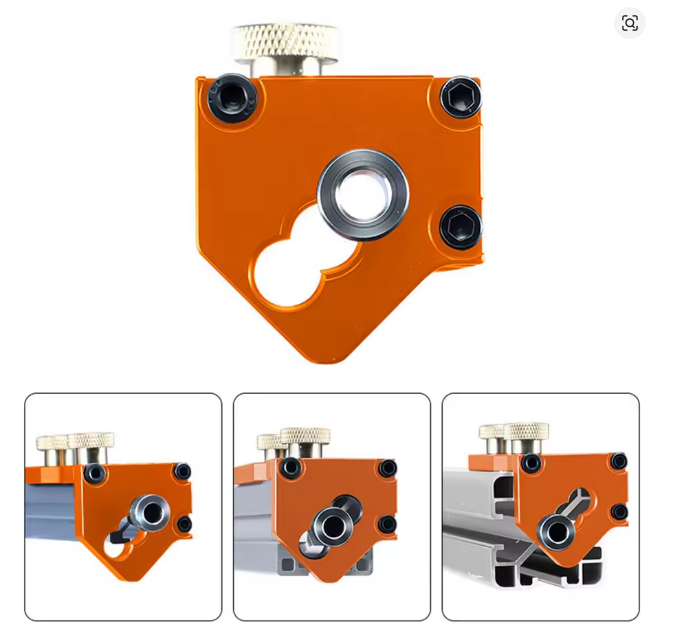

• Triple-Series Alignment: Versatile design fits the 20mm, 30mm, and 40mm profile families.
• Perfectly Square Threads: Guarantees 90-degree alignment to prevent cross-threading or angled bolts.
• Center-Bore Precision: Automatically aligns with the extrusion core for professional-grade results.
• Protective Design: Engineered to grip the profile securely without scratching or marring the anodized finish.
• Durable Construction: Built from robust materials to withstand repeated industrial use.
