• Industrial-grade concealed T-connector and profile joining bar for 4040 aluminum systems, shown with four M6 internal set screws.

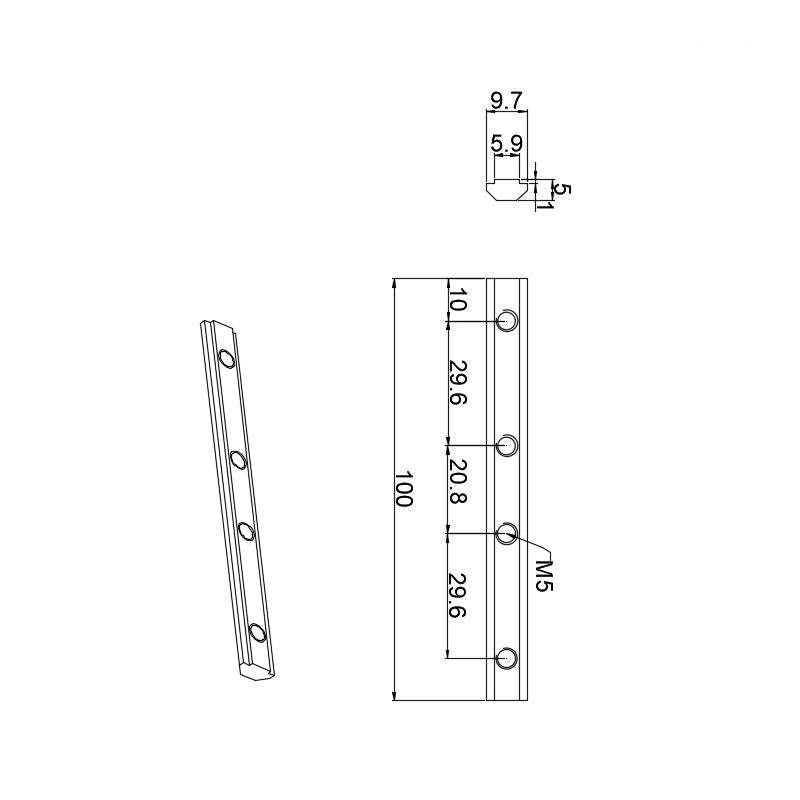

  • Concealed T-connector and profile joining bar dimensions for 2525 aluminum T-slot systems, featuring internal M5 threads and a flush-mount design
1 2

www.tslotmodbuild.com.au

Profile Joining Bar - 2525 T-Slot Concealed T-Connector - 100mm Long (Includes Fasteners)

Profile Joining Bar - 2525 T-Slot Concealed T-Connector - 100mm Long (Includes Fasteners)

PN:702063M5X6

⚠️ Important Shipping Note (Long Items): If your delivery address is outside the Perth Metro area, the system may show a $0.00 shipping cost at checkout. Do not worry! We will contact you directly by phone after you place your order to confirm the most affordable freight options to your remote region or interstate address.

$6.00 AUD
$6.00 AUD
Sale Sold out
Includes GST.

The 2525 Concealed T-Connector, widely referred to as a Profile Joining Bar, is a precision-engineered fastening solution for the 25 series T-slot aluminum system. This connector is designed to be completely recessed within the T-slot channel, facilitating a high-strength, flush joint without the need for bulky external corner brackets.

Perfect for applications where aesthetics are critical—such as premium display cases, architectural framing, and minimalist furniture—this connector provides a secure and rigid link while preserving the sleek exterior profile of your build. Each bar comes fully equipped with internal set screws, ensuring you have everything needed for a seamless installation right out of the box.

Key Benefits:

Clean Aesthetics: Creates an "invisible" connection with no visible external hardware.

Ready to Install: Includes 4x M5 internal set screws for immediate assembly.

Internal Mounting: Engineered to slide perfectly into the 25 series T-slot channel.

Durable Construction: Built for reliability and rigid profile alignment.

Seamless Integration: Allows for flush-fitting panels and a professional finished look.

Feature Specification
Feature Specification
Series Compatibility 25 Series T-Slot
Package Inclusions 1x Joining Bar + 4x M5 Set Screws
Total Length 60mm
Slot Cross Section 5.9mm (W) x 5.0mm (H)
Thread Size M5 (Internal)
SKU PN:702063M5X6
