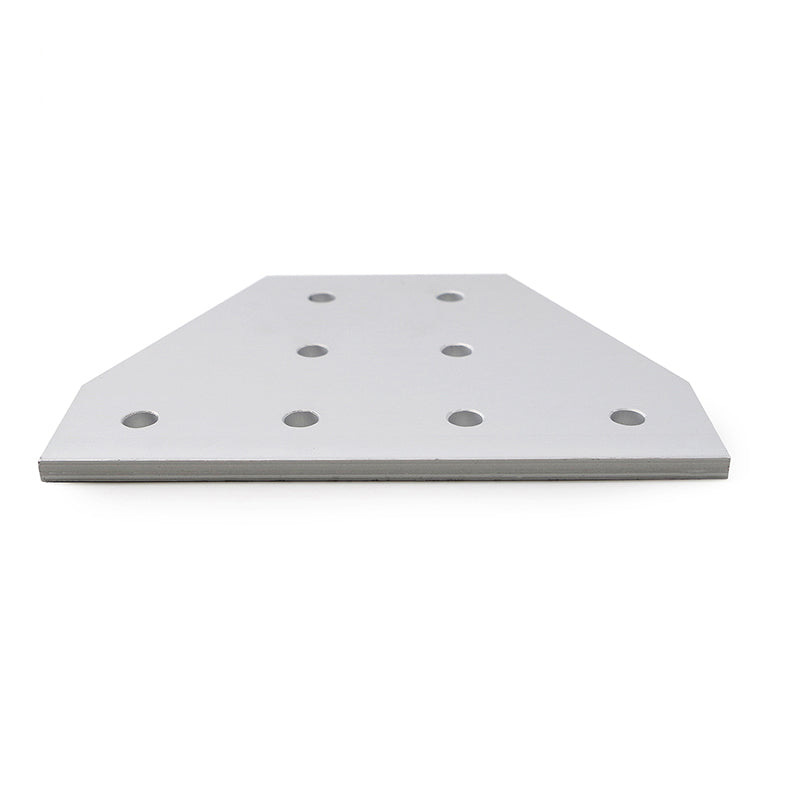

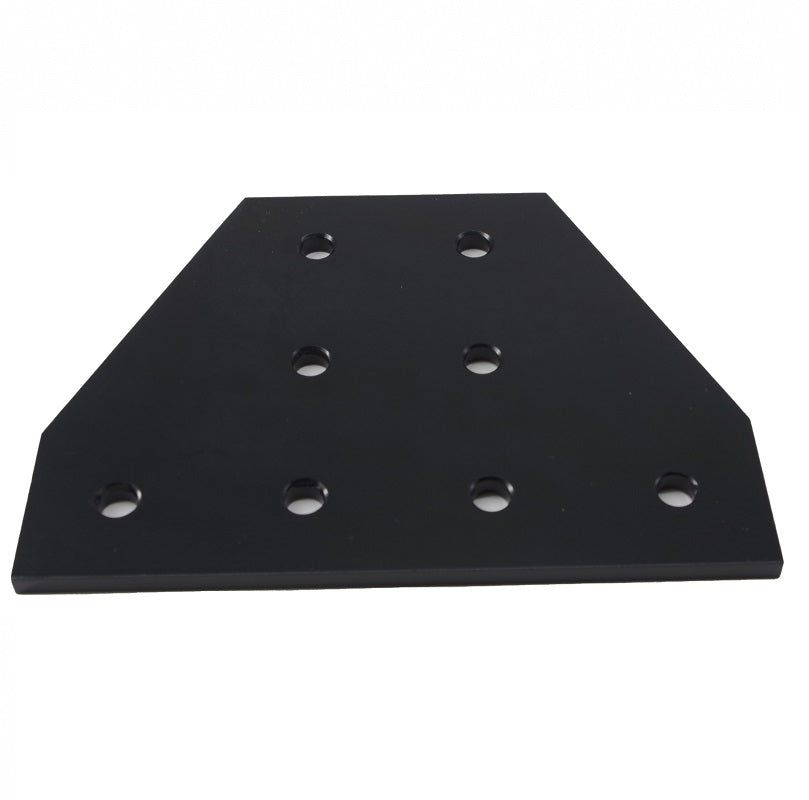

• Silver Heavy-duty 8-hole Tee shape flat joining plate for 4040 and 4080 series T-slot aluminium extrusion, reinforced steel T-junction connector
  • Heavy-duty 8-hole Tee shape flat joining plate for 4040 and 4080 series T-slot aluminium extrusion, reinforced steel T-junction connector

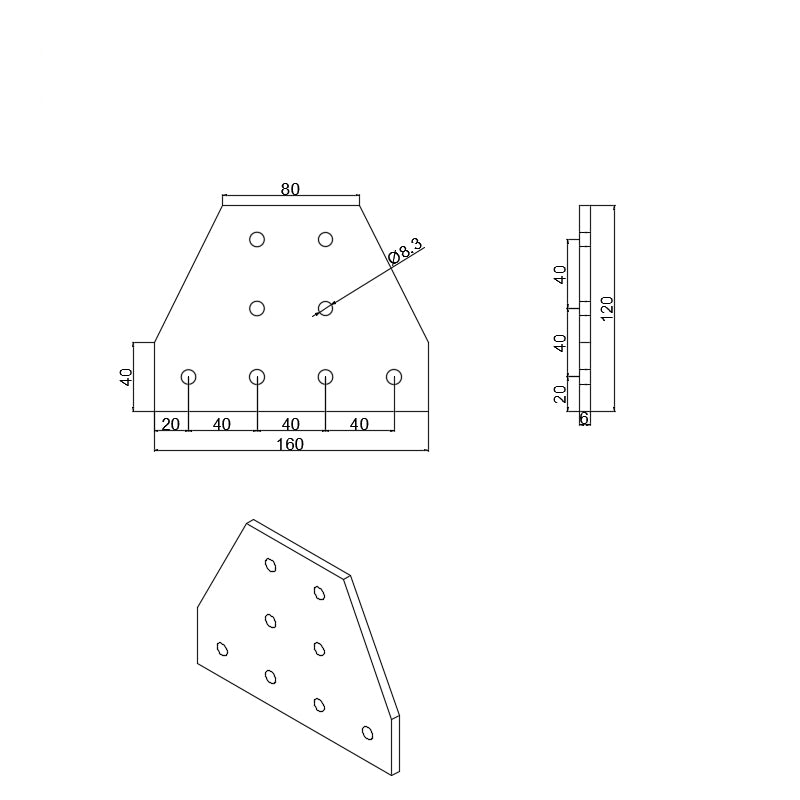

  • Dimensions for heavy-duty 8-hole Tee shape flat joining plate for 4040 and 4080 series T-slot aluminium extrusion, reinforced steel T-junction connector
1 3

www.tslotmodbuild.com.au

T-Slot 4040 to 4080 "Tee" Flat Plate 8-hole Connector

T-Slot 4040 to 4080 "Tee" Flat Plate 8-hole Connector

PN: 426081M8X16SiL

⚠️ Important Shipping Note (Long Items): If your delivery address is outside the Perth Metro area, the system may show a $0.00 shipping cost at checkout. Do not worry! We will contact you directly by phone after you place your order to confirm the most affordable freight options to your remote region or interstate address.

$20.30 AUD
$20.30 AUD
Sale Sold out
Includes GST.

Description:

This flat plate is shaped like a "T" to join a 4040 series profile to the middle of a 4080 series profile. The 8-hole configuration provides a secure attachment point, ensuring the joint remains stable even under moderate loads. It's a simple yet effective way to add a perpendicular member to a larger frame.

Application:

This connector is perfect for adding vertical supports, horizontal crossbars, or mounting points to an existing structure. For example, it can be used to mount a smaller bracket or a shelf to the side of a larger T-slot frame.
