8080 Aluminum T-Slot Profile with 8 Slots - Silver - 80mm x 80mm
8080 Aluminum T-Slot Profile with 8 Slots - Silver - 80mm x 80mm
SKU:
⚠️ Important Shipping Note (Long Items): If your delivery address is outside the Perth Metro area, the system may show a $0.00 shipping cost at checkout. Do not worry! We will contact you directly by phone after you place your order to confirm the most affordable freight options to your remote region or interstate address.
Couldn't load pickup availability
Share

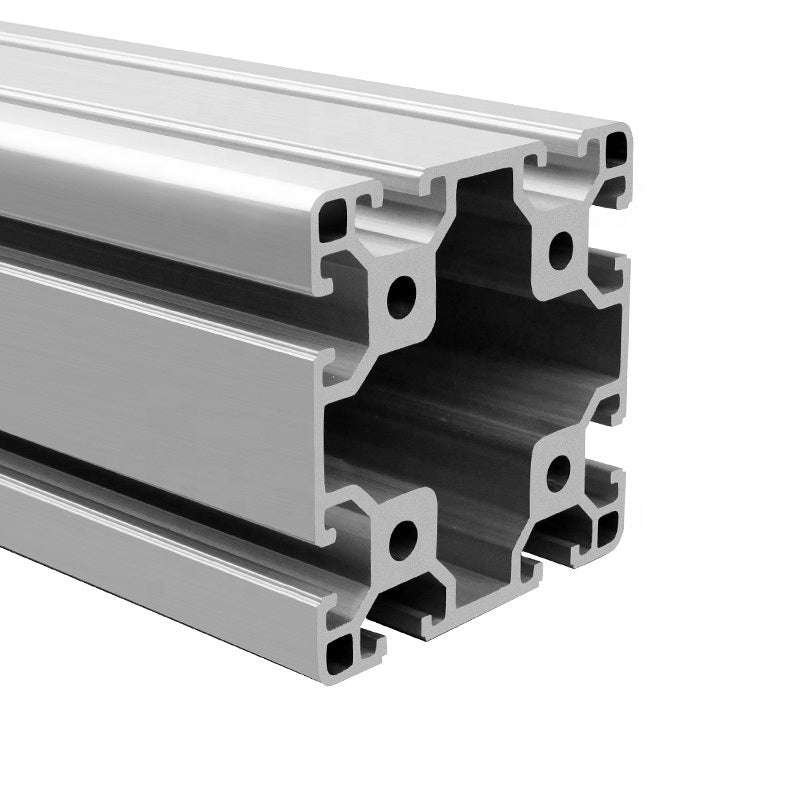

The 8080 T-Slot Aluminum Profile is the industry standard for heavy-duty structural applications. Featuring a substantial 80mm x 80mm cross-section with 8 integrated slots (two per side), this profile offers exceptional rigidity and load-bearing capacity.
Whether you are constructing heavy-duty workstations, industrial machine frames, or large-scale display units, the 8080 series provides the structural integrity required for professional-grade projects. Its silver anodized finish ensures a professional aesthetic while providing long-lasting resistance to corrosion and wear.
Key Features:
- Industrial Strength: Engineered for medium to heavy-duty structural framing.
- 8-Slot Versatility: Allows for complex multi-directional mounting and accessories.
- Precision Extrusion: Smooth T-slots ensure perfect alignment for fasteners and joiners.
- Compatibility: Designed to work seamlessly with all standard 80 series (40 series compatible) T-nuts, bolts, and brackets.

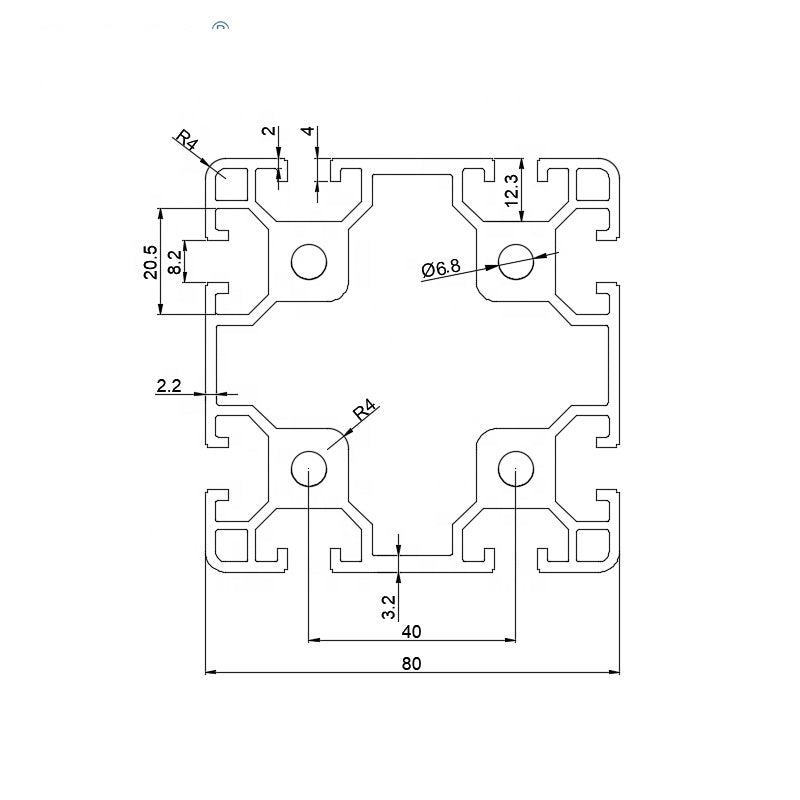

| Feature | Specification |
|---|---|
| Series | 80 Series (80x80 Geometry) |
| Width / Profile | 80mm x 80mm x 3000mm (Configuration) |
| Material | Structural Grade High-Tensile Aluminum |
| Weight per Meter | 4.86 kg/m |
| Finish | Silver Anodized |
| Slot Width | 8.3mm (Standard 8mm hardware) |
