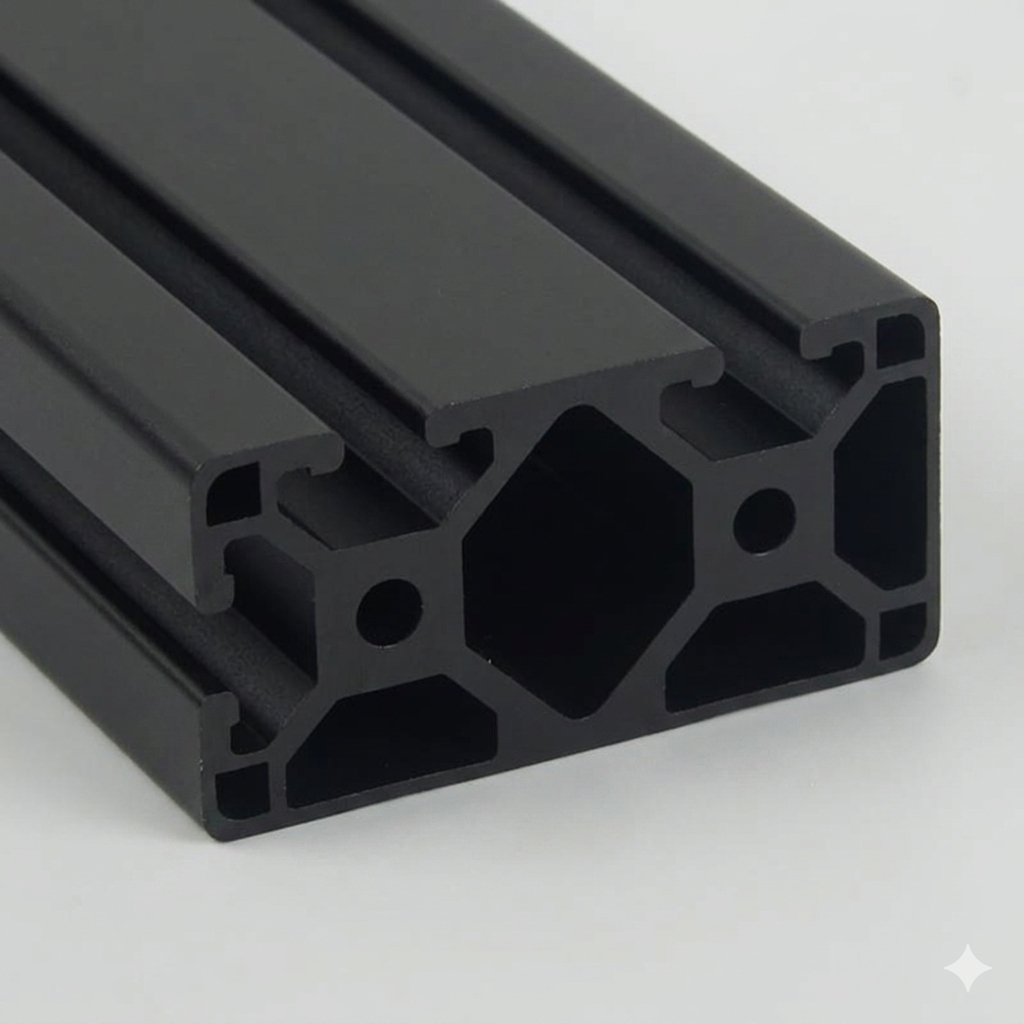

4080 Aluminum T-Slot Profile - 40mm x 80mm with 3 Slots & 2 Flat Walls - Black

The 4080 Bi-Slot/Tri-Slot Aluminum Profile is the ultimate structural solution for high-visibility frames that require maximum rigidity. Featuring a 40mm x 80mm rectangular cross-section, this profile is designed with 3 open T-slots and 2 smooth flat walls. This unique configuration allows you to maintain the immense load-bearing capacity of the 4080 series while presenting a clean, architectural finish on exposed faces.

By combining structural mass with a minimalist exterior, this profile is perfect for premium sim-racing rigs, high-end laboratory workstations, and architectural display frames where you want to hide fasteners and minimize dust buildup. At 3.1kg/m, it provides the weight and density necessary for professional motion-control frames and vibration-sensitive equipment.

Key Features:

• Architectural Finish: Two flat faces allow for a "closed" look on visible exterior surfaces.
• Superior Strength: The 80mm vertical axis provides high resistance to bending over long spans.
• Multi-Slot Utility: Three active T-slots provide ample mounting points for standard 40 series accessories.
• Engineered Mass: A 3.1kg/m density ensures professional-grade durability and vibration dampening.



Feature	Specification
Series	4080 Series (40x80 Geometry)

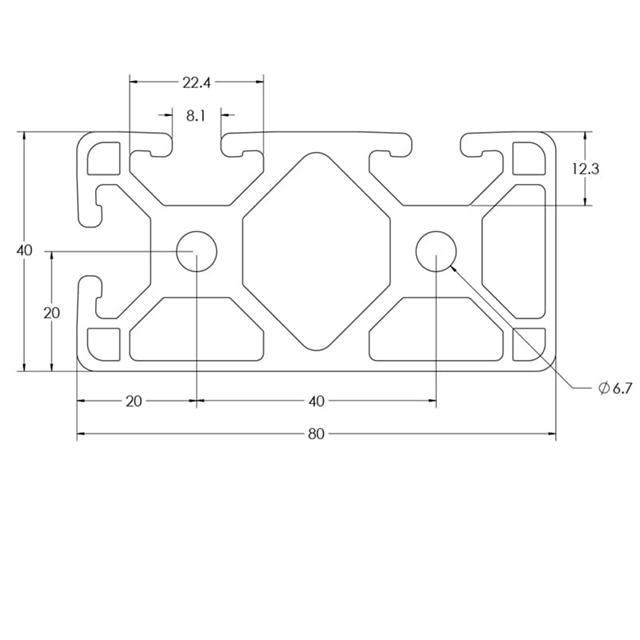

Width / Profile	40mm x 80mm 3 Slots & 2 Flat Walls (Configuration)
Material	Structural Grade High-Tensile Aluminum
Weight per Meter	3.1 kg/m
Finish	Black Anodised
Slot Width	8.3mm (Standard 8mm hardware)
