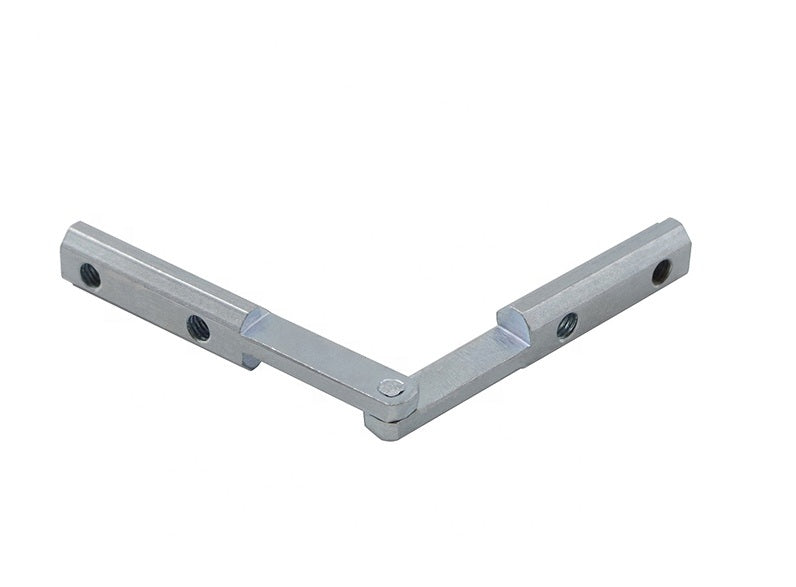

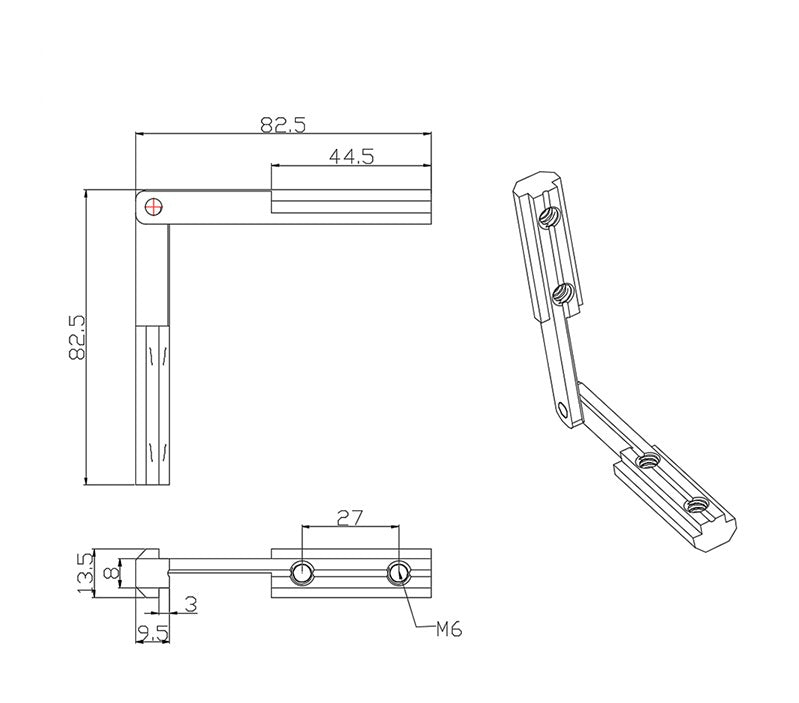

4040 T-Slot Simple Any Angle Inside Corner Connector

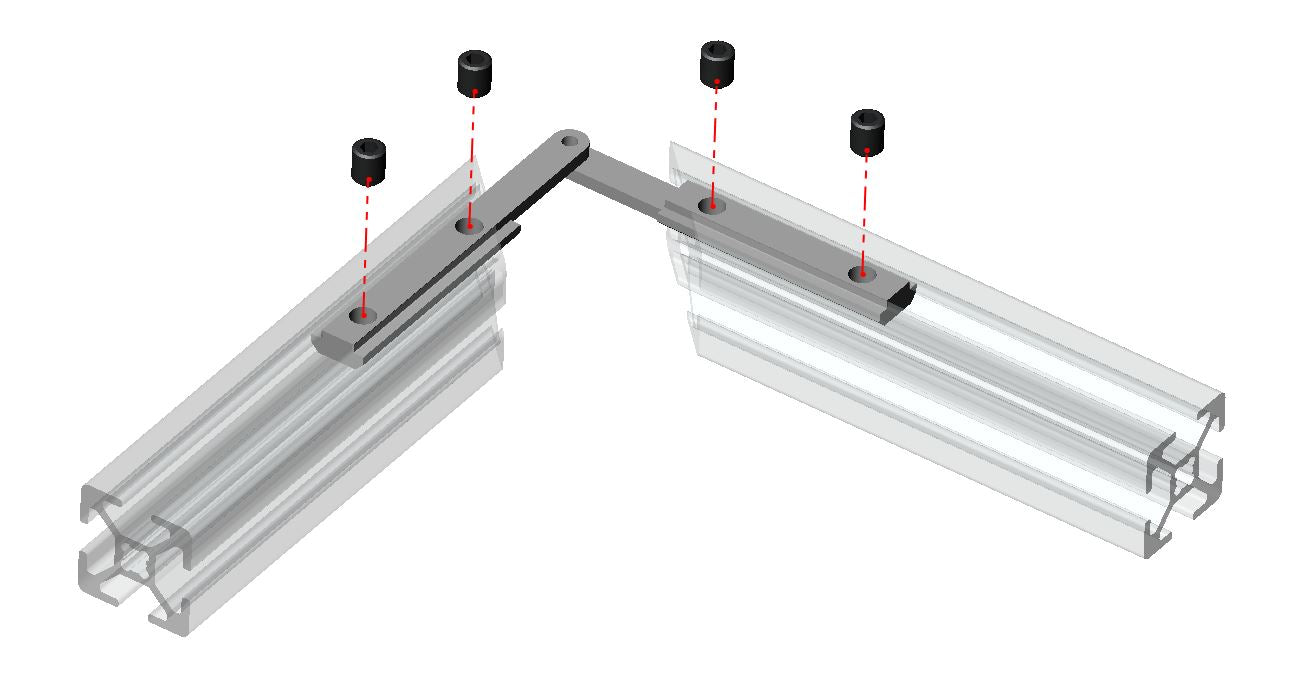

The T-Slot "Any Angle" Swivel Joint is a versatile connector designed to join two T-slot aluminum extrusions at a variable angle, ranging from 0 to 180 degrees. Unlike fixed-angle brackets, this joint uses a central pivot mechanism that allows for precise, user-defined adjustments. It is typically made from a durable material like zinc alloy or a reinforced plastic composite, providing both strength and flexibility. The joint fastens securely into the T-slots and can be locked into place once the desired angle is achieved, ensuring a strong and stable connection.

Application

This type of "any angle" connector is essential for projects that require design flexibility, movable parts, or non-standard angles that a fixed 90-degree bracket cannot accommodate. It is a critical component for creating custom, articulated structures. Common applications include:

• Adjustable arms or mounts for cameras, monitors, or tools on a workbench or machine frame.

• Swiveling supports or handles on ergonomic workstations and control panels.

• Creating custom-angled braces to reinforce a structure against twisting or lateral loads.

• Building frames for robotics or automation where movement and adjustable positioning are required.

• Prototyping and custom fabrication where the design requires a unique, non-standard angle.

The T-Slot 4040 "Any Angle" Swivel Joint is an invaluable tool for adding dynamic and adaptable functionality to any T-slot extrusion project.
