Elevate Your Projects with Unmatched Strength and Precision!

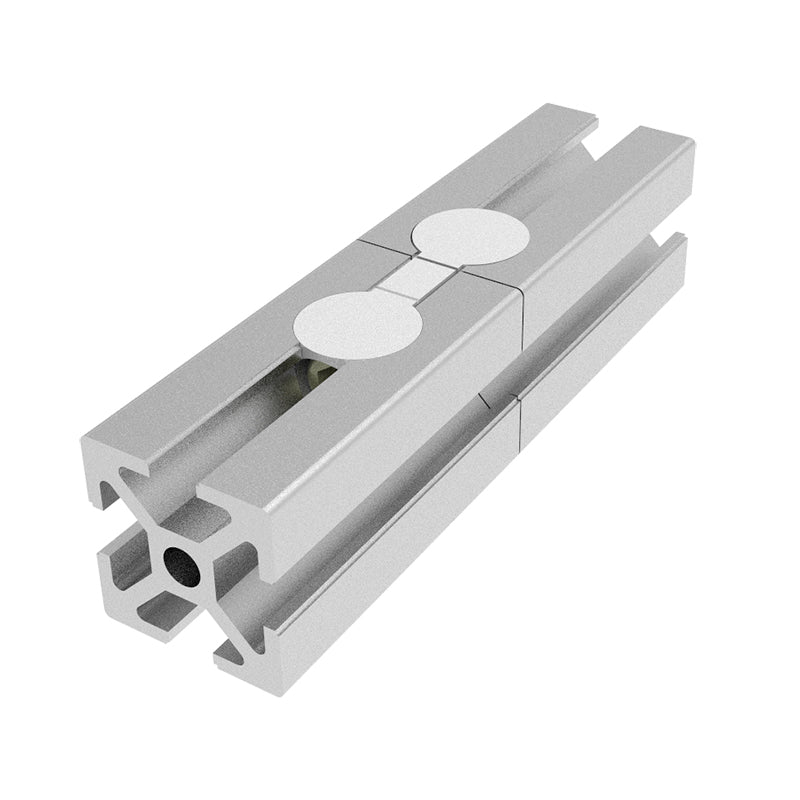

Introducing the Concealed Anchor Fastener Tension Connector Kit, the perfect solution for achieving seamless and robust connections in your aluminum T-slot projects. This innovative connector kit is designed specifically for both straight profile and corner joining, ensuring that your constructions are not only strong but also aesthetically pleasing.

Why Choose Our Tension Connector Kit?

• Exceptional Strength: Featuring a unique tension-stressed design, our fasteners provide unparalleled holding power, ensuring your joints remain secure under load.
• Concealed Installation: The counterboring method allows for a clean and discreet installation, eliminating visible hardware and enhancing the overall appearance of your projects.
• Versatile Applications: Ideal for a variety of applications, including furniture assembly, machinery frames, and display structures, our kit adapts effortlessly to your needs.
• Easy to Use: Engineered for both professionals and DIY enthusiasts, the installation process is straightforward, allowing for quick and effective assembly without compromising quality.

Transform your engineering and construction projects with the Concealed Anchor Fastener Tension Connector Kit—where strength meets sophistication!

Installation Method

Step-by-Step Guide to Installing the Concealed Anchor Fastener Tension Connector Kit

1. Gather Your Tools:

• Drill with 15mm counterboring capabilities
• Measuring tape
• Level
• Allen wrench (or appropriate tool for the fittings)

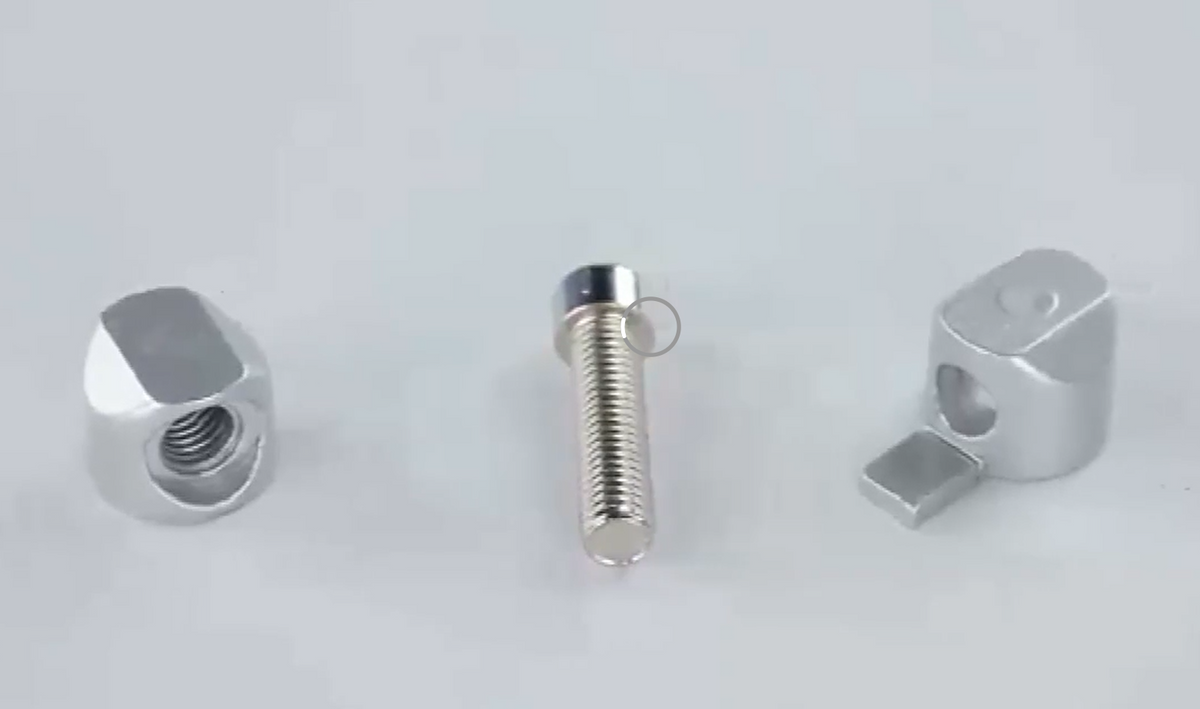

• Concealed Anchor Fastener Tension Connector Kit components

2. Prepare the Aluminum T-Slot Sections:

Measure and mark the locations on the aluminum T-slot sections where the joints will be connected. Ensure these marks are level and aligned correctly to maintain structural integrity.

3. Counterbore the Slot:

Using the drill, carefully counterbore a 15mm slot into the marked locations on the aluminum T-slot sections. The slot should be deep enough to accommodate the fittings snugly, following the specifications provided in the kit instructions.

4. Insert the Fittings:

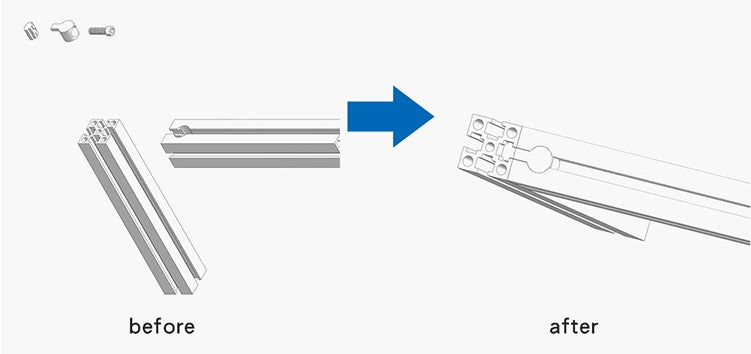

Place the fittings from the Concealed Anchor Fastener Tension Connector Kit into the counterbored slots. Ensure they are positioned correctly for both straight and corner joints, allowing for optimal tension distribution.

5. Secure the Connectors:

Tighten the connectors using the provided Allen wrench or tool, ensuring that each fitting is securely fastened. This step is critical for achieving the desired tension in the joint, enhancing its strength and stability.

6. Check Alignment:

After securing the connectors, check the alignment of your aluminum T-slot sections. Make any necessary adjustments to ensure everything is square and level.

7. Complete Your Project:

Once satisfied with the alignment and stability, you can proceed with any additional assembly or finishing touches. The concealed connectors provide a sleek, professional appearance, perfect for any project.

By following these simple steps, you will create an extremely strong tension-stressed joint that enhances the durability and aesthetics of your aluminum T-slot constructions. Upgrade your projects today with the Concealed Anchor Fastener Tension Connector Kit!
