Aluminium T-Slot Profile Sections & Extenders
Special Offers
-
Vendor: www.tslotmodbuild.com.au
2020 Die Cast Aluminium T-Slot 2-Hole Inside Corner Bracket With Gusset
Regular price $2.95 -
Vendor: www.tslotmodbuild.com.au
2525 Die Cast Aluminium T-Slot 2-Hole Inside Corner Bracket With Gusset
Regular price $3.95 -
Vendor: www.tslotmodbuild.com.au
4040 Die Cast Aluminium T-Slot 2-Hole Inside Corner Bracket With Gusset
Regular price $4.95 -
Vendor: www.tslotmodbuild.com.au
2020 T-Slot 2-Hole Lite Inside Corner Bracket
Regular price $1.54
-
Vendor: T-Slot ModBuild.com.au

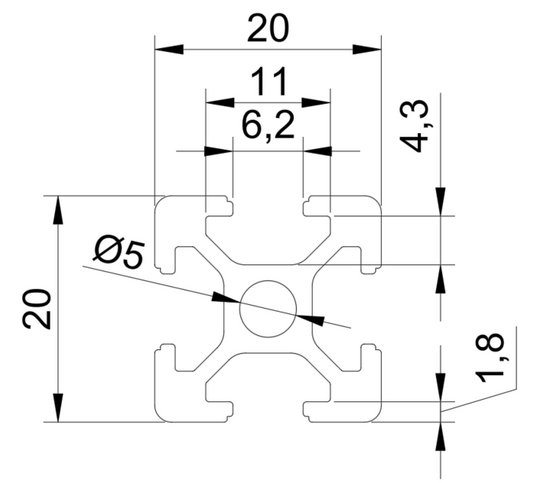

2020 Aluminum T-Slot Profile - 20mm x 20mm with 4 Slots | Lightweight Modular Framing - Silver or Black
The 2020 T-Slot Aluminum Profile is the ultimate lightweight solution for precision framing and modular builds. With a compact 20mm x 20mm square cross-section and 4 open T-slots (one on each face), this profile offers maximum...Regular price From $33.00Regular price From $33.00 -
Vendor: T-Slot ModBuild.com.au

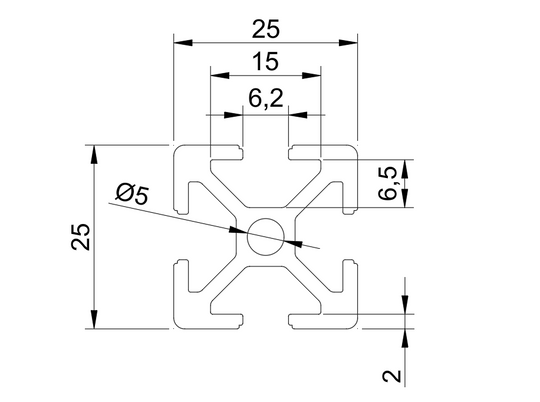

2525 Aluminum T-Slot Profile - 25mm x 25mm with 4 Slots | Lightweight Structural Framing - Silver or Black
The 2525 T-Slot Aluminum Profile serves as the perfect intermediate solution between ultra-lightweight and standard medium-duty profiles. With its 25mm x 25mm square cross-section and 4 accessible T-slots, it provides a significant boost in structural rigidity...Regular price From $17.00Regular price From $17.00 -
Vendor: T-Slot ModBuild.com.au
4040 Aluminum T-Slot Profile - 40mm x 40mm with 4 Slots - Black
Property | ValueMass Density, ρ (g/cm³) | 2.70Mass per Meter, m (kg/m) | 1.4426Moment of Inertia, Iₓ / Iᵧ (mm⁴) | 98,456Section Modulus, Zₓ / Zᵧ (mm³) | 4,922.8Radius of Gyration, rₓ / rᵧ (mm) |...Regular price From $36.00Regular price From $36.00 -
Sold out
Vendor: T-Slot ModBuild.com.au
4040 Aluminum T-Slot Profile - 40mm x 40mm with 2 Slots & 2 Flat Walls - Black
sProperty | ValueMass Density, ρ (g/cm³) | 2.70Mass per Meter, m (kg/m) | 1.6238Moment of Inertia, Iₓ / Iᵧ (mm⁴) | 87,118.54Section Modulus, Zₓ / Zᵧ (mm³) | 4,355.93Radius of Gyration, rₓ / rᵧ (mm) |...Regular price From $36.00Regular price From $36.00 -
Vendor: T-Slot ModBuild.com.au

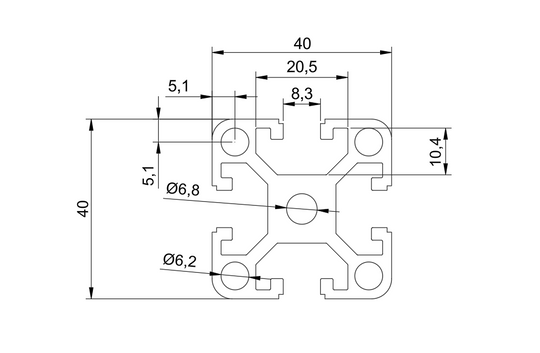

4040 Aluminum T-Slot Profile - 40mm x 40mm with 4 Slots - Silver or Black
Property | ValueMass Density, ρ (g/cm³) | 2.70Mass per Meter, m (kg/m) | 1.7756Moment of Inertia, Iₓ / Iᵧ (mm⁴) | 95,447.74Section Modulus, Zₓ / Zᵧ (mm³) | 4,772.39Radius of Gyration, rₓ / rᵧ (mm) |...Regular price From $36.00Regular price From $36.00 -
Vendor: T-Slot ModBuild.com.au

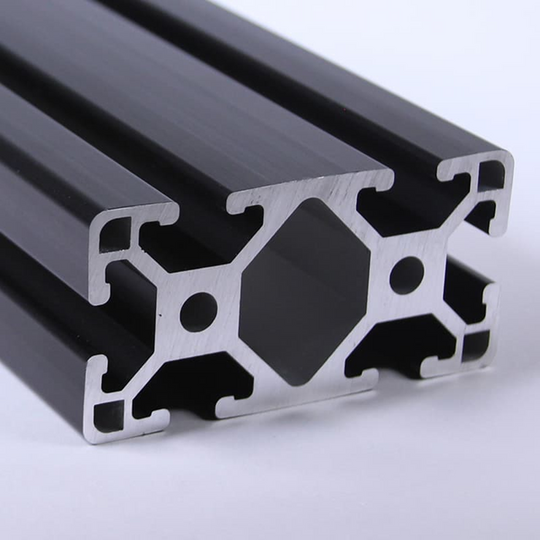

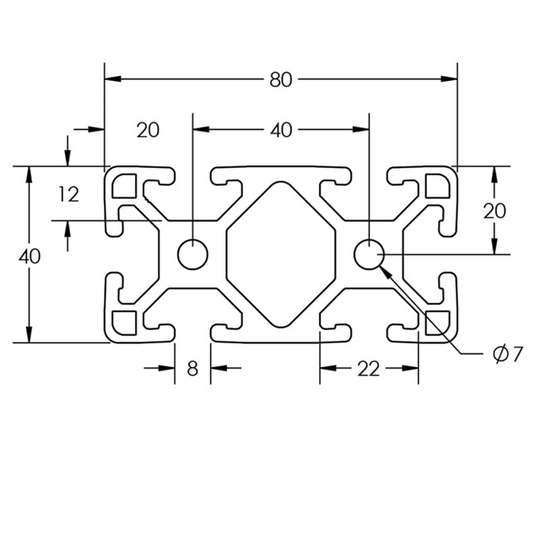

4080 Aluminum T-Slot Profile - 40mm x 80mm with 6 Slots - Silver or Black
The 4080 T-Slot Aluminum Profile is a high-performance structural extrusion designed for applications requiring superior bending strength and rigidity. With a 40mm x 80mm rectangular cross-section and 6 integrated T-slots, this profile provides significantly more structural...Regular price From $74.25Regular price From $74.25
With our T-slot profile sections, you're no longer limited by the size of a single piece of tubing. You can join two lengths of our aluminum profile in series to create a perfectly continuous, longer beam.
Build Longer
Seamlessly extend your framework by joining two lengths of tubing in series. Choose our profile joining bar for a clean, professional finish that maintains the sleek look of your project or a tension connector kit for rapid and reliable assembly. It provides a hidden, secure connection within the t-slots.
Build Stronger
Need to handle a heavier load? You can instantly increase the rigidity and strength of your structure by joining two sections in parallel. This technique effectively doubles the load-bearing capacity and stability of your framework.
Our parallel tube connector kit is specifically designed for this purpose, providing a simple yet incredibly strong way to combine two profiles side-by-side. This ensures your structure can withstand greater forces and heavier weights without compromising stability.
Note: We have a wide range of profile size and shape. . . if you don't see what you want hit us up !
If you have any questions about which profiles or extenders are right for your project, please feel free to "Contact Us" with your query..
-
